ACP Corollary Equipment

Location: Home > Products > ACP Corollary Equipment

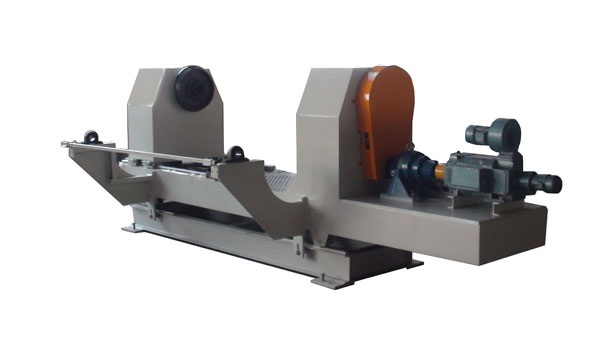

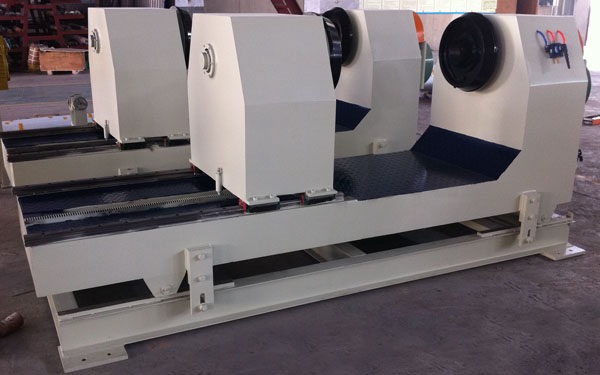

Unwinding and rewinding machine

Unwinding and rewinding machine

Modality£ºSingle wall movable cone chuck, with safety device
Coil weight: 3,000kg/p (max)
Size: 3740L×800W×1750H(mm) (not exactly)
Weight: 3000kg (not exactly)
Function: Using precision automatic tension control system to supply the aluminium coil stable.
Components:
(1)Armor plate and U-iron seat
(2)400N.M. magnetic particle brake
(3)Single wall movable clamp, easy to load and unload the aluminium coil, easyf centring
(4)Single wall moving air cylinder assembly parts
(5)Cone chuck Φ150/Φ405, suitable for the aluminium coil in common use(hydraulic shrink type is optional)
(6)Seat position micromatic setting device
(7)Automatic tension control system

Unwinding and rewinding machine

Unwinding and rewinding machine
